ContactPost: CIVIL AVIATION AUTHORITY OF MALAYSIA Tel: 6-03-8778 4106 Email: ais@caam.gov.my URL: aip.caam.gov.my | AIP Supplement for Malaysia | AIP SUP 34/26 Effective Date: 11 JUN 2026 Publication Date: 11 JUN 2026 |
ContactPost: CIVIL AVIATION AUTHORITY OF MALAYSIA Tel: 6-03-8778 4106 Email: ais@caam.gov.my URL: aip.caam.gov.my | AIP Supplement for Malaysia | AIP SUP 34/26 Effective Date: 11 JUN 2026 Publication Date: 11 JUN 2026 |
1. The purpose of this AIP Supplement is to notify Beyond Visual Line of Sight (BVLOS) Nested Unmanned Aircraft System (UAS) operation at Samalaju Industrial Port, Bintulu for surveillance activity.
2. The Nested UAS manufactured by DJI Dock 3, was installed in a specific location in the Samalaju Industrial Port Area. The control centre communicates with the nested UAS via internet connectivity allowing for the drone operation to operate remotely. DJI Dock 3 utilizes a DJI M4TD for aerial monitoring and surveillance activity at Samalaju Industrial Port.
3. Height of operation is 400 FT AGL and below.
4. The activity shall remain within the following time, location and the coordinates below.
UAS operation hours: 0000 - 2359 UTC,

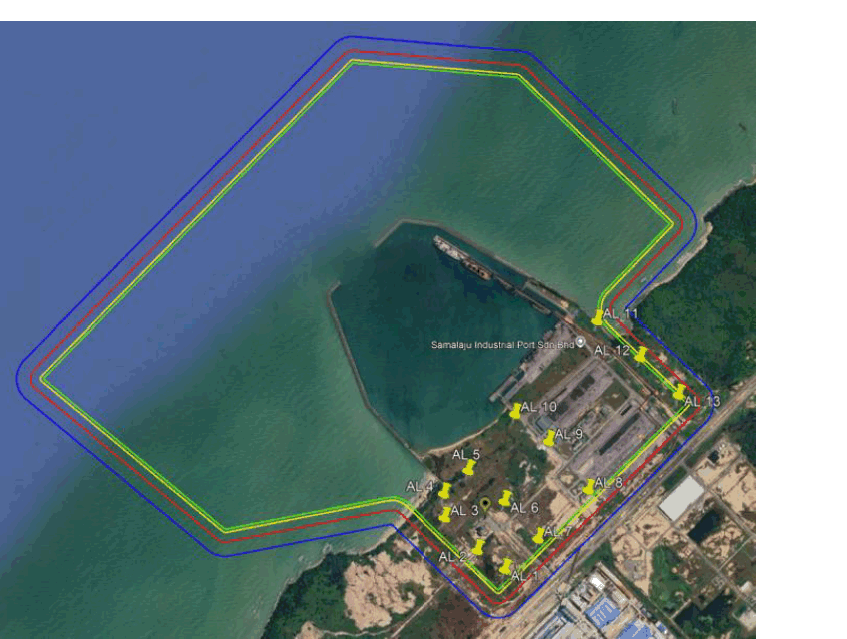

Bintulu Port Operation area and Nested UAS Location,
Coordinates of Nested UAS operation Area :
| Latitude | Longitude |
|---|---|
| 3°33'28.92"N | 113°19'12.27"E |
| 3°33'47.96"N | 113°18'50.07"E |
| 3°33'41.61"N | 113°18'14.66"E |
| 3°34'18.34"N | 113°17'32.65"E |
| 3°35'28.86"N | 113°18'40.90"E |
| 3°35'25.09"N | 113°19'19.91"E |
| 3°34'49.37"N | 113°19'53.95"E |
| 3°34'31.86"N | 113°19'39.09"E |
| 3°34'11.86"N | 113°19'56.78"E |
| 3°33'28.92"N | 113°19'12.27"E |
5. Any information or queries to contact:
| Name | Mr. Mohamad Afiq Daniel Bin Mohamad Nizam |
| Position | Executive, UAS Unit, Flight Operations Division |
| Tel | 03-8871 4382 |
| afiq.nizam@caam.gov.my |
6. This AIP Supplement supersedes NOTAM D0310/26 and will remain in force until 31 JAN 2027. Any updates, changes, or cancellations to this supplement will be notified through NOTAM.
